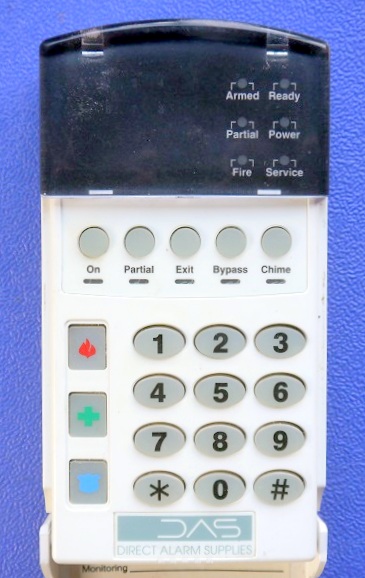

NX8 Keypad repairs - User pin code reset - code pad servicing replacements

We service NX8 alarm system keypads to LED Vertex, other compatible versions, NX-8 alarm panels, wireless battery devices, wireless receivers, remote control key fobs to your security system. We provide battery replacements, technical programming and resets to your existing old type NetworX NX8 burglar unit for fast call out servicing.

We repair NX8 keypad - Red Power light flashing - Service  light indicator ON - Alarm code pad beeping - system code resets - NX8 battery replacements - Keypad replacements - Beeping error fault - Unexpected false alarming - Emergency disconnections due to non-stop sirens sounding - Smoke alarm beeping service - Fire light flashing - Siren fault trouble - Tamper zone faults fixed - If you cannot set your alarm system - Open zone faults - Wireless NX8 alarm systems

NBN issues to your alarm system

In most situations the National Broadband Network will not work to most NX8 alarm monitoring communications to your mobile devices. A fault light, service light and/or beeping tone occurs when your system attempts to dial a monitoring back to base station or smart phone number without success. It is likely that the receiving number didn’t signal through (communication fault). If you have purchased NBN to your premises, you may need to ring your service provider network to check if this is compatible to your unit. In most cases you will now be required to install GPRS or ComNav set-up via internet to your mobile phone for text messaging alerts.

Alarm Maintenance service many more security systems for domestic, residential and commercial to protect to your family building and your property.

Instructions for NX-8 ALARM SYSTEM

How to ARM your alarm system from your code pad

Ensure the green READY light is on (areas are sealed) close the doors and windows

Enter USER CODE eg. 6 9 3 9 or just press the "ON" button

Make sure that the red ARMED & Green ON light illuminates

If any of the zones are isolated, a sensor in that zone can give a mixed reading affecting the "READY" light (green light flashing). The security system will not arm if the "READY" light is not illuminated green. With the "READY" light on, you may arm the security system with your 4-digit Code. Each time a key is pressed on the keypad, a short beep will sound. If the code pad beeps three times after a code entry, it is an indication that the code has not been accepted. Press the [#] key (reset) and re-enter a valid code. The code pad sounder can be quietened by re-entering your pin code. When the security system has accepted a valid code, the red "ON" light will illuminate indicating that the system has been turned on. The user must leave within the exit delay time.

How to disarm your NX8 security system

Enter USER CODE eg. [6] [9] [3] [9]  if code is 6939 -  keypad "ON" light goes OFF

When you return to your property the keypad will sound a continuous tone (beep) for the duration of the entry delay time. Enter a valid code within this entry time and the red "ON" light will turn OFF, and the tone will stop. The security system is now DISARMED. If a valid code is not entered before the end of the entry delay time, an alarm will occur.

How to change the first user code to your NX8 security system

Enter from keypad *5 followed by your 4 digit master code followed by [0][2] followed by new 4 digit user code then press [#] to save and exit programming

How to change the master code to the security system

1.  Press [*] 5 followed by your existing master code eg. [6] [9] [3] [9]  if code is 6939
2.  enter the two-digit user code location code to change Example: [0][1]
3.  enter the new four-digit code number you would like  eg. [2] [6] [2] [6] if code is 2626
4.  press the [#] key to save new number and exit programming

How to set the system date to your NX-8 security system with five easy steps

1. On your keypad Press the [*] [9] [6] keys for access to function 96
2. enter your master code Example: [1][2][3][4] if the code is 1234 and Date is 23/10/2020 Friday
3. enter day of the Week code:[1]= Sunday [2]= Monday [3]= Tuesday [4]= Wednesday [5]= Thursday [6]= Friday [7]= Saturday
4. enter the two-digit month code  [0][1] = January to [1][0] October [1][2] December
5. enter the two digit day of the Month code Example: [0][1]= 1st  [2][3]= 23rd [3][1]= 31st
6. finally enter the last two digits of the Year code. Example: for 2020 enter [2][0] followed by the [#] key

How to set the system clock (time)

1. Press the  [*] [9] [7] keys for access to function 97
2. enter the master code Example.[1][2][3][4] if the code is 1234
3. enter the hour sequence Example: for 7.40pm enter [1][9][4][0]

Why is my keypad power light flashing on my NX-8 alarm

The power light (red LED) will start flashing because this shows that your back-up-battery to the control panel is very low and now needs replacement. When the alarm battery has been replaced and reset properly, the power light will stop flashing showing that the main battery is now in working fine as it should be.

Why is my service light lit "ON" to my NX8 alarm keypad?

The service light (yellow LED) on your keypad light is ON because it requires servicing.

If the service light is "ON" pressing the [*] star key followed by the [2] number two key to indicate the service condition. The LED or LED`S will illuminate indicating what service needs attending to. Refer to your instructions to locate the issues that is causing this service requirement.

Common issues to your NX8 service light "ON" are a wireless zone low battery, low main battery, loss of zone tamper supervision, faulty devices telephone line fault, loss to communications, fuse fail, reset to system time, expander device trouble, external tamper fault and siren fault.

WE SERVICE MANY MORE MAKES & MODELS

NESS NESS KEYPADS BOSCH SOLUTION DAS NETWORX - NX SERIES HILLS RELIANCE Hills Reliance R8, Hills Reliance R12, Hills Reliance R128, Networx NX-4, Networx NX12, Networx NX-16, Networx NX-8, Interlogix, DAS DL KEYPAD  ADEMCO VISTA CK SYSTEMS  HONEYWELL EDM  DSC & Much more
